Journal of the Selva Andina Animal Science

versión impresa ISSN 2311-2581

J.Selva Andina Anim. Sci. vol.7 no.2 La Paz  2020



https://doi.org/10.36610/j.jsaas.2020.070200050x

Research Article



Parámetros morfométricos del espermatozoide de alpaca (Vicugna pacos), obtenidos por tres métodos de colección



Morphometric parameters of alpaca spermatozoa (Vicugna pacos), obtained by three collection methods





Huanca-Marca Nancy Frinee1*, Ordoñez-Rodríguez Cesar Domingo1, Quispe-Ccasa Hurley Abel2, Antezana-Julian Walter Orestes1, Jordan-Misme Luis Alipio1, Ampuero-Casquino Enrique1, Cucho-Dolmos Hernán Carlos1

1Academic Department of Livestock. Professional School of Animal Husbandry. Faculty of Agricultural Sciences. National University of San Antonio Abad of Cusco. Granja K’ayra S/N, San Jerónimo, Cusco, Perú. Av. de La Cultura 773, Cusco 08000, Perú. Telf. +51.84.604100 - 51.84.604160 Fax 51.84.238156 AP 921 - Cusco, Perú
2Graduate school. Toribio Rodríguez de Mendoza National University of Amazonas. University Campus: C. Higos Urco N ° 342-350-356. Chachapoyas 01001, Perú. Tel: 041-477694 / DGAYRA: 041-478821

*Contact address: Academic Department of Livestock. Professional School of Animal Husbandry. Faculty of Agricultural Sciences. National University of San Antonio Abad of Cusco. Granja K’ayra S/N, San Jerónimo, Cusco. Av. de La Cultura 773, Cusco 08000, Perú. Telf. +51.84.604100 - 51.84.604160 Fax 51.84.238156 AP 921 - Cusco, Perú.

Nancy Frinee Huanca-Marca
E-mail address: frineehm92@gmail.com

Record from the article.
Received June 2020.
Returned August 2020.
Accepted September 2020.
Available online October 2020.

ID of article: 075/JSAAS/2020

J. Selva Andina Anim. Sci. 2020; 7(2):50-62.






Resumen

La morfología espermática es esencial en la evaluación de la calidad seminal e importante para la predicción de la fertilidad de machos reproductores. El objetivo del presente estudio fue comparar los parámetros morfométricos de espermatozoides de alpaca, obtenidos por tres métodos de extracción de semen, la recuperación del conducto deferente (DCD), electroeyaculación (EE) y aspiración vaginal (AV). La colección se realizó de 3 animales por cada método. Se determinó la movilidad, concentración, vitalidad, funcionalidad de membrana y parámetros de morfometría espermática, con un equipo de análisis computarizado de semen - ISAS® CASA - Morph. Para los parámetros morfométricos, las muestras de semen se procesaron con un kit de tinción Hemacolor® y se observaron en un microscopio de contraste de fases. Por cada muestra, se capturaron al menos 200 espermatozoides al azar, con resolución de imágenes de 0.08 μm por píxel en los ejes horizontal y vertical. La motilidad total fue de 16.27±11.96%, 14.68±11.21% y 12.44±7.27%, la concentración espermática de 247±186.70 x 106EPZ/mL, 67.92±67.92 x 106EPZ/mL y 100.32±56.13 x 106EPZ/mL, la vitalidad fue 62.86±15.92%, 63±15.21% y 70.16±14.33% en espermatozoides colectados por DCD, EE y AV respectivamente. En cuanto a los parámetros morfométricos se encontró una longitud de 5.49±0.43 µm, 5.53±0.41µm y 5.75±0.53µm, área 14.30±2.0µm2, 15.05±1.77µm2 y 15.88±2.0µm2, perímetro de 16.10±1.31µm, 17.11±1.20µm y 17.41±1.43µm, ancho de 3.22±0.27µm, 3.30±0.32µm y 3.33±0.25 µm y el porcentaje de acrosoma de 52.22±7.82%, 49.52±7.47% y 47.44±5.77% en espermatozoides colectados por DCD, EE y AV respectivamente. La comparación de los parámetros morfométricos entre método de colecta y animal se realizó mediante un diseño de bloques alzar. Los parámetros morfométricos del tamaño y forma de la cabeza de espermatozoide, y pieza intermedia mostraron diferencias estadísticas significativas (p<0.01) entre métodos de colección y entre animal. En conclusión, los parámetros morfométricos del espermatozoide de alpaca son influidos por el método de colección, y muestran variación entre animales.

Palabras clave: Alpaca, método colecta, espermatozoide, morfometría, CASA, ISAS®


Abstract

Sperm morphology is essential in evaluating seminal quality and important for fertility prediction in breeding males. The aim of this study was to compare the morphometric parameters of alpaca sperm, collected using three methods of semen extraction, recovery of the vas deferens (DCD), electro ejaculation (EE) and vaginal aspiration (VA). The collection was made of 3 animals by each method. The mobility, concentration, vitality, membrane functionality and sperm morphometry parameters were determined in a computerized semen analysis kit – ISAS® CASA - Morph. For morphometric parameters, semen samples were processed with a Hemacolor® staining kit and viewed under a phase-contrast microscope. For each sample, at least 200 sperm were captured at random, with an image resolution of 0.08 µm per pixel on the horizontal and vertical axes. The comparison of the morphometric parameters between the collection method and the animal was carried out using a random block design. Total motility was 16.27±11.96%, 14.68±11.21% and 12.44±7.27%; the sperm concentration of 247±186.70x106EPZ/mL, 67.92±67.92x106EPZ/mL and 100.32±56.13x106EPZ/mL, the vitality was 62.86 ±15.92%, 63±15.21% and 70.16±14.33% in sperm collected by DCD, EE and AV respectively. Regarding the morphometric parameters, a length of 5.49±0.43µm, 5.53±0.41µm and 5.75±0.53µm was found, area 14.30±2.00 µm2, 15.05±1.77 µm2 and 15.88±2.00 µm2, perimeter of 16.10±1.31µm, 17.11±1.20µm and 17.41 ± 1.43, width of 3.22±0.27µm, 3.30±0.32µm and 3.33±0.25µm and the acrosome percentage of 52.22±7.82µm, 49.52±7.47µm and 47.44±5.77µm in sperm collected by DCD, EE and AV respectively. The morphometric parameters of the size and shape of the sperm head and the intermediate piece showed significant statistical differences (p <0.01) between the collection methods and between the animals. In conclusion, the morphometric parameters of alpaca spermatozoa were influenced by collection method, and show variations between animals.

Keywords: Alpaca, collection method, spermatozoa, morphometry, CASA, ISAS®






Introduction

The collection of semen in South American camelids (SAC) presents inconveniences such as duration, the position of the copulation, high viscosity, low volume of ejaculates, as well as low concentration of sperm, absence of progressive motility, difficult handling, motivating the search for a technique optimal for extracting semen and being able to manipulate sperm (EPZ), without losing their fertilizing capacity1,2. Semen collection depends on a good and constant sperm production for its quality, collection techniques are highly developed in other domestic species, in which there is already a routine procedure, but in SAC there is no recommended protocol and technique optimal, therefore, the seminal characteristics are highly variable and depend on the form of collection and there are several factors that affect its quality3.

Of all the seminal quality parameters analyzed in an ejaculate, such as volume, concentration, motility, vitality, and sperm morphology, it is recognized that morphology is a determining characteristic to diagnose male fertility problems and predict it in artificial insemination (AI)4.5.

The use of morphometric reference values of EPZ can increase the knowledge of their capacity for natural and in vitro fertilization, as well as their quality and function after cryopreservation6. Morphological and morphometric evaluation of the acrosome structure of EPZ allows the precise prediction of the fertilization capacity of males7,8.

In this context, the determination of their morphological structure is of particular importance, because their size and shape are important criteria in the classification of EPZs as normal and abnormal. Not only has the size of the head affected the fertilization capacity, but also the dimensions and function of the tail and central piece9.

In SAC, 40% of the EPZ of ejaculate has a normal morphology10, for which several studies have been carried out because the shape, size of the head, of the spermatic nucleus, are related to the DNA content and the chromatin organization11, it is essential to analyze the sperm morphology of reproducers because nucleus abnormalities are frequently associated with a reduction in fertility12.

However, characterization, the precise classification of sperm morphology, requires objective measurement techniques and standardized staining methods. Therefore, the use of computer-assisted semen analysis (CASA) systems for stained semen samples has meant an advance in the precise analysis of sperm morphology, based on a series of parameters13,14. In SAC there are few studies on the morphology and morphometry of EPZs of llama and alpaca11,15-21 where different staining protocols with Hemacolor®, Diff Quick®, Papanicolaou, and Staining 15 ® were used.

In this sense, the present study aimed to compare the morphometric parameters of the EPZs of alpaca (Vicugna pacos) between three methods of semen extraction, deviation of the vas deferens, electroejaculation, and vaginal aspiration.



Materials and methods

Study place and animals. The study was carried out at La Raya Research Center on South American Camelids (CICAS), of Agrarian Sciences Faculty (FCASF) of the Universidad Nacional de San Antonio Abad del Cusco (UNSAAC), located at an altitude of 4133 meters, since January until June 2017. The experimental group consisted of 9 adult male alpacas from 6 to 8 years of age and average weight of 69.11±9.84 kg, kept in a natural grassland (fescue, stipas and calamagrostis) and free access water.

Semen collection. Semen extraction was performed by three methods: EPZ recovery by deviation of the vas deferens (DCD), electroejaculation (EE) and vaginal aspiration (VA), assigning 3 alpacas to each method. For the recovery of EPZ by DCD, alpacas previously operated were used and the vas deferens were diverted towards the inner thigh21. Through a fistula, the EPZ drops were suctioned and deposited in 2 mL vial tubes22, containing 0.3 mL of dilutor Tris base, fructose and citric acid, at 37 °C23. For the semen extraction by EE, the protocol of Director et al.24 with modifications for alpacas, under general anesthesia (Ketamine 2.5 mL/100 kg BW and Xylazine 0.2 mL/20 kg BW intravenously) was taken as a reference25, applied increasing cycles of 2 to 12 V, with alternating periods of electrical stimulation of three seconds and with rest intervals of one second with the electroejaculator (ElectroJac 5®, Ideal Instruments®, Lansing, EU). Semen samples were extracted by VA from females after a copulation period of 20 to 40 min with selected males, introducing a vaginal speculum up to the cervix, making rotary and vertical movements in the same axis26. In all cases, the samples were immediately stored at 37 ° C.

Microscopic evaluation. Total motility (progressive mobiles and non-progressive mobiles) and EPZ concentration were evaluated in the ISAS® equipment, Integrated Semen Analysis System (Proiser I+D, Paterna, Valencia, Spain), equipped with a UOP phase-contrast microscope-UB200i, 10X Nega tive phase contrast objective, with video camera (Ximea MQ003MG-CM, Ximea, Münster, Germany). Vitality was determined by fluorescence, using the VitalTest® kit (Halotech, Madrid, Spain) (acridine orange solution and propidium iodide solution), following the manufacturer's specifications. To evaluate the functionality of the sperm membrane, a hypoosmotic solution of 50 mOsm/kg27 was used, where an adequate function of the membrane was evidenced with a positive reaction to tail roll (HOST +). To determine the percentages of vitality and HOST +, no less than 200 EPZ were counted, with the objective of 40X of the ISAS®.

Sperm morphometry. The slides with semen samples were dried in the environment and subjected to the staining protocol of the Hemacolor® kit (Merck, Darmstadt, Germany), following the manufacturer's recommendations. The morphometric analysis of the samples was carried out in the ISAS® morphometry module, with the objective of 100X and immersion oil. The video frame capture frame size was 768x576x8 bits and 256 levels of gray. The resolution of the images was 0.08 μm per pixel in the horizontal and vertical axes. No less than 200 EPZ were randomly captured per sample, with no overlap between EPZs.13 Morphometric parameters were analyzed, the size of the EPZ head (figure 1) were length (L, µm), width (W, µm), area (A, µm2) and perimeter (P, µm), from which the shape parameters, such as ellipticity (L / W), elongation ([LW] / [L+W]), regularity (πLW/4A) and rugosity (4πA / P2). In addition, the percentage of acrosome (% of total head), width and area of the midpiece (PI) in µm, insertion distance of PI (between the head and the axis of the PI, µm) and the angle insertion of PI5,22 by the three collection methods (Figure 2).

Figure 1 Morphometric parameters studied in this study according to the Soler study.5

Statistic analysis. Descriptive statistics of sperm motility, concentration, vitality and functionality were obtained. The assumptions of normality and homoscedasticity were determined using the Kolmogorov-Smirnov and Levene tests for the data obtained from the CASA-Morph analysis of all the cells analyzed. For data that did not have a normal distribution, their transformation was carried out with the TRANSREG procedure of SAS. The comparison between semen collection methods was made under a random block design, the comparison of means was made with Duncan's test. For statistical calculations, the SAS v. 8.2 (North Carolina State University-United States).

Yijk=µ + Ai + Cj+ eijk.

Where:

Yijk = Response variable.
µ = Population mean or common constant.
Ai = Animal effect
Cj = Effect of the collection type
eijk = Experimental error.



Results

Table 1 Microscopic variables of alpaca semen and sperm (Mean±SD), obtained by deviation of the vas deferens (DCD), electroejaculation (EE) and vaginal aspiration (VA)

*SD:  Standard deviation

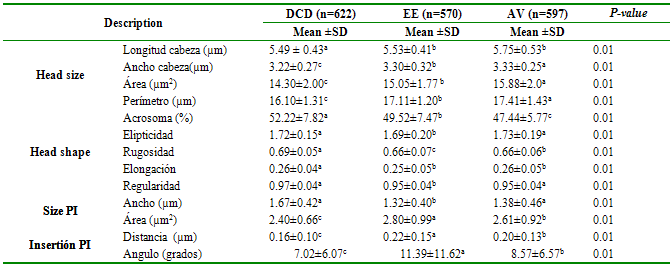

Table 2 Morphometric parameters of alpaca sperm (Mean SD±), obtained by deviation of the vas deferens (DCD), electroejaculation (EE) and vaginal aspiration (VA)

* Different letters in the row indicate highly significant differences (p ≤ 0,01) * SD.: Standard deviation; PI: Intermediate piece

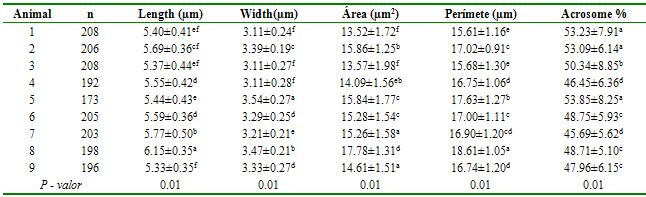

Table 3 Morphometric parameters of the alpaca sperm head (mean±SD) per animal, obtained by deviation of the vas deferens (DCD), electroejaculation (EE) and vaginal aspiration (VA)

* Different letters in the row indicate highly significant differences (p ≤ 0,01) * SD.: Standard deviation.



Discussion

The determination of the routine microscopic characteristics of the EPZs of alpacas obtained by three collection methods: total motility (MT), sperm concentration (CE), vitality, and functionality of the sperm membrane (FMP), is observed in Table 1. These findings are within the ranges described by Meza et al.21 and Quispe28 in EPZ recovered from the vas deferens, Alarcón et al.29 in semen collected by VA, and by Flores et al.25, Ordoñez et al.30 and Ciprian31 in semen collected by EE, all of them in alpacas. All microscopic variables were evaluated in 9 collections by each semen extraction method. The values of the morphometric parameters of the EPZ head size (length, width, area, and perimeter), head shape (ellipticity, rugosity, elongation, and regularity), percentage of the acrosome, width, area, distance, and angle of insertion of the midpiece of the EPZ, table 2. The collection method significantly influenced all the morphometric parameters of the EPZ head size (p <0.01) (table 2). The morphometric dimensions of the head size of EPZ obtained by DCD were smaller than by EE and AV. This great morphometric variability between collection methods is probably due to the presence of seminal plasma (EE) and fluids from the female's tract (AV), since the EPZ recovered from the vas deferens are devoid of secretions from the prostate and glands. bulbourethral, which make up a complete ejaculate. Therefore, the majority of EPZs collected by DCD probably have not completed their maturation. Seminal plasma plays an important role in the conservation of EPZ because it contains antioxidants such as vitamin C, vitamin E, urate, albumin, taurine, hypotaurine, pyruvate, and lactate, as well as secretory protein rich in cysteine (CRISP3), positively associated with the conception rate32,33.

Some parameters are similar to the reports by Buendía et al.15 Casaretto et al.34, Ordoñez et al.16, Soler et al.35 Giuliano & Ferrari36, Evangelista-Vargas et al.18 Flores-Huarco37 and Cucho et al.22 For example, Ordoñez et al.16 report larger head size dimensions (length 5.89 μm, width 3.50 μm and perimeter 17.53 μm) in VA semen, stained with Diff Quick® and evaluated in ISAS®, which is probably due to the type of staining used, on the other hand, Buendía et al.15 point out greater length and width of the head (6.10 μm and 3.62 μm, respectively) and smaller perimeter (15.11 μm), in alpaca semen collected by AV, stained with Hemacolor® and evaluated in SCA®. To understand these differences, it could be hypothesized that in whole semen (EE), the presence of seminal plasma, or blood cells, vaginal mucus, and other impurities (VA) could stimulate the acrosomal reaction. Ordoñez et al.16 reported a lower percentage of acrosome compared to the head (46.58%) collected by AV, Ciprian33 (49.95%, and 56.08%) in EPZ collected by EE and DCD. The acrosome is a structure directly related to fertility38.

Figure 2 Microscopic images of the head and intermediate piece of alpaca sperm with the ISAS® equipment, a) sperm collected by AV, b) sperm recovered by DCD and c) sperm collected by EE

Each EPZ is endowed with a single acrosome, the shape, and size of which vary widely between species39. The acrosomal reaction induced naturally or artificially, depending on the staining used, can lead to its loss or an overestimation of the size of the EPZ40 head. Although Yániz et al.14 suggest using fluorescence techniques to differentiate the structure of EPZs. Cucho et al.22 consider that the adequate staining for EPZ of the vas deferens is Hemacolor®, because it allows determining the presence and proportion of the acrosome in the spermatic head. Similarly, statistically significant differences were found in the parameters of the head shape, and the intermediate piece (PI) of the EPZ (p <0.01) (table 2). From a pathological point of view, it is argued that adverse environmental conditions such as high temperature and humidity could generate hydrocele and scrotal edema in animals, altering the macroscopic and microscopic characteristics of the ejaculates and in the morphometric parameters of the EPZ41. However, by virtue of the morphological diversity of the alpaca EPZ, various functional aptitudes are attributed according to the morphological characteristics of the EPZ. Thus, Núñez-Martínez et al.42 affirm that there is a cryopreservability variable between subpopulations, which depends on the osmotic gradient according to cell shape, volume, and area (parameters used to estimate roughness and regularity).

There are few reports of the study of sperm PI morphometry, Cucho et al.22 found similar values with Hemacolor®, but Ordoñez et al.16 obtained higher values, in EPZ collected by (VA) and with the type of staining used (Diff Quick®). The staining influences the real morphometric dimensions of the EPZ, where the sperm undergoes deformations, either by osmosis or dehydration, the EPZ can be reduced up to 20% of the length and 13% of the head width, these characteristics are necessary to perform the analysis in CASA43 systems. Cucho et al.22 indicate that the results of alpaca sperm morphometry are sensitive to the applied staining technique. Lüpold et al.44 found an association between PI length and sperm motility since greater motility would be related to a greater amount of energy produced in more mitochondria present in a more elongated PI45. However, Malo et al.46 argue that a larger PI can hinder the locomotion of EPZs, making them slower. The high variability in the insertion angle of the IP (Table 2) may be due to the mechanical action of the extension (smear) and drying, influencing its calculation. The morphometric parameters of the size of the EPZ head such as length, width, area, perimeter, and percentage of the acrosome of each animal are observed in (Table 3). Where the variables of the morphometric parameters (length, width, area, perimeter, and percentage of the acrosome) have an individual variation in alpacas (p <0.01). The high variation in sperm dimensions between individuals and within the ejaculate of the same individual (Table 3) could support the hypothesis of camelid sperm heteromorphicity due to the high degree of polymorphisms in the same ejaculate47. The microscopic variables of semen in South American camelids vary between individuals and these are also affected by both the collection method and the season48. The sperm morphology in different species is variable between individuals of the same species, breed, between ejaculates of the same individual, and even as morphometric subpopulations within the same ejaculate, due to the physiological state, sexual maturity, and genetic polymorph that controls spermatogenesis46,49,50.

The importance of the role of EPZ morphometry in recent years has become very important in all species. For example, Maree et al.51 mentioned the relationship between sperm morphometry and fertility in humans, and there are studies that indicate the relationship between the dimensions of EPZ and fertility in horses52,53,54,55 in which the disorders of fertility are positively correlated with the size of the sperm heads.  The relationship between EPZ morphology and fertility has also been studied in boars56, bulls57,58, dogs59, and foxes60. The main sources of variation in the morphometry of EPZs are the preparation of the sample, the fixation method, the microscopic system, the technician's activity, and the collection method, all this can affect the repeatability of the analysis, its reproducibility, and the comparison of the results. between laboratories61. It is of great importance that the collection method is ideal for the EPZ collection and that it does not affect the morphology, structure, and size of the EPZs.

The results indicate that the choice of the semen collection method has an impact on the dimensions of the EPZ head and on the morphometric parameters; in which the EPZ recovered by DCD are those that exhibit smaller dimensions with respect to the EPZ of complete ejaculates (EE and AV); morphometric parameters vary between animals. However, given the variability of the parameters studied, more studies are required to understand the implications of morphometric diversity on sperm function.



Funding Source

The authors point out that the present work was funded by the project "Study, validation and application of reproductive biotechnologies in the process of improvement and genetic evaluation of alpacas in the provinces of Canas, Canchis and Quispicanchi of the Cusco Region".



Conflicts of interest

The handling of the animals was carried out according to protocols that adhere to European standards. This research has been funded by the project "Study, validation and application of reproductive biotechnologies in the process of improvement and genetic evaluation of alpacas in the provinces of Canas, Canchis and Quispicanchi of the Cusco Region" and does not generate conflict of interest.



Acknowledgements

This research was developed thanks to the project "Study, validation and application of reproductive biotechnologies in the process of improvement and genetic evaluation of alpacas in the Canas, Canchis and Quispicanchi provinces of the Cusco Region".



Ethical aspects

The protocols used in the study adhere to the European standards indicated in (https://ec.europa.eu/environment/chemicals/lab_animals//legislation_en.htm, for the use of animals in research.



Cited literature

1. Solís R, editor. Producción de camélidos sudamericanos. Huancayo Perú: Imprenta Ríos; 1997. 550 p.        [ Links ]

2. Miragaya M, Martínez Sarrasague M, Casaretto M, Rubin de Celis E, Carretero I, Giuliano S. Assessment of apparent viscosity and analysis of rheological profiles in llama ejaculates. En: 16th International Congress on Animal Reproduction (ICAR); 2008; July 13-17; Budapest. Hungry.        [ Links ]

3. Pacheco Curie JI. Métodos de colección de semen en camélidos sudamericanos. Rev Electrón Veterinario 2008;9(5):1-15.        [ Links ]

4. Slama R, Eustache F, Ducot B, Jensen TK, Jørgensen N, Horte A, et al. Time to pregnancy and semen parameters: a cross-sectional study among fertile couples from four European cities. Hum Reprod 2002;17(2):503-15. DOI: https://doi.org/10.1093/humrep/17.2.503        [ Links ]

5. Soler C, Gaßner P, Nieschlag E, de Monserrat JJ, Gutiérrez R, Sancho M, et al. Use of the integrated semen analysis system (ISAS®) for morphometric analysis and its role in assisted reproduction technologies. Rev Int Androl 2005;3(3):112-9. DOI: https://doi.org/10.1016/S1698-031X(05)73257-X         [ Links ]

6. Partyka A, Niżański W, Ochota M. Methods of assessment of cryopreserved semen. In: Katkov I, editor. Current Frontiers in Cryobiology, Intech Open; 2012. p. 547-74.

7. Nikolettos N, Küpker W, Demirel C, Schöpper B, Blasig C, Sturm R, et al. Fertilization potential of spermatozoa with abnormal morphology. Hum Reprod 1999;14(Suppl 1):S47-70. DOI: https://doi.org/10.1093/humrep/14.suppl_1.47        [ Links ]

8. Menkveld R, Rhemrev JPT, Franken DR, Vermeiden JPW, Kruger TF. Acrosomal morphology as a novel criterion for male fertility diagnosis: relation with acrosin activity, morphology (strict criteria) and fertilization in vitro. Fertil Steril 1996;65(3):637-44. DOI: https://doi.org/10.1016/S00150282(16)58167-9        [ Links ]

9. Gontarz A, Banaszewska D, Gryzińska M, Andraszek K. Differences in drone sperm morphometry and activity at the beginning and end of the season. Turk J Veter Anim Sci 2016;40(5): 598-602. DOI: https://doi.org/10.3906/vet-1511-6        [ Links ]

10. Fumuso FG, Giuliano SM, Chaves G, Neild DM, Miragaya MH, Bertuzzi ML, et al. Incubation of frozen‐thawed llama sperm with seminal plasma. Andrologia 2020;52(6):e13597. DOI: https://doi.org/10.1111/and.13597        [ Links ]

11. Ferrari MR, Spirito SE, Giuliano SM, Fernández HA. Chromatin cytophotometric analysis of abnormal bovine spermatozoa. Andrologia 1998; 30(2):85-9. DOI: https://doi.org/10.1111/j.14390272.1998.tb01151.x        [ Links ]

12. Carretero MI, Lombardo D, Arraztoa CC, Giuliano SM, Gambarotta MC, Neild DM. Evaluation of DNA fragmentation in llama (Lama glama) sperm using the sperm chromatin dispersion test. Anim Reprod Sci 2012;131(1-2):63-71. DOI:https://doi.org/10.1016/j.anireprosci.2012.02.008        [ Links ]

13. Soler C, Gadea B, Soler AJ, Fernández Santos MR, Esteso MC, Núñez J, et al. Comparison of three different staining methods for the assessment of epididymal red deer sperm morphometry by computerized analysis with ISAS®. Theriogenology 2005;64(5):1236-43. DOI: https://doi.org/10.1016/j.theriogenology.2005.02.018

14. Yániz JL, Capistrós S, Vicente Fiel S, Soler C, Nuñez de Murga J, Santolaria P. Study of nuclear and acrosomal sperm morphometry in ram using a computer-assisted sperm morphometry analysis fluorescence (CASMA-F) method. Theriogenology 2014;82(6):921-4. DOI: https://doi.org/10.1016/j.theriogenology.2014.06.017        [ Links ]

15. Buendía P, Soler C, Paolicchi F, Gago G, Urquieta B, Pérez Sánchez F, et al. Morphometric characterization and classification of alpaca sperm heads using the sperm-class analyzer computer-assisted system. Theriogenology 2002;57(4): 1207-8. DOI: https://doi.org/10.1016/s0093-691x(01)00724-5        [ Links ]

16. Ordoñez C, Ampuero E, Cucho H, Chalco G. Morphometric characterization of alpaca sperms using the Integrated Sperm Analysis System (ISAS). Spermova 2012;2(1):67-8. DOI: https://doi.org/10.13140/RG.2.1.5169.9449        [ Links ]

17. Soler C, García Molina A, Sancho M, Contell J, Núñez M, Cooper TG. A new technique for analysis of human sperm morphology in unstained cells from raw semen. Reprod Fertil Dev 2016; 28(4):428-33. DOI: https://doi.org/10.1071/RD14087         [ Links ]

18. Evangelista Vargas D, Evangelista Vargas S, Santiani A, Valdivia M. Análisis morfométrico de espermatozoides de alpaca utilizando softwares de captura y medición de imágenes. En: Primer congreso de la Sociedad Latinoamericana de Reproducción Animal; 2015 March 25-28; Buenos Aires. Argentina.        [ Links ]

19. Carretero MI, Fumuso FG, Miragaya M, Herrera C, Giuliano SM. Effect of seminal plasma in Lama glama sperm. Reprod Fertility Develop. 2015;27(1):223-223. DOI: https://doi.org/10.1071/RDv27n1Ab267        [ Links ]

20. Carretero MI, Giuliano MS, Neild DM. Evaluation of sperm DNA quality in South American camelids and other domestic species. Spermova 2017;7(1):18-26. DOI: https://doi.org/10.18548/aspe/0005.04         [ Links ]

21. Meza A, Caldeira C, Valverde A, Ordoñez C, Ampuero E, Cucho H, et al. Sperm kinematic characterization of alpaca (Vicugna pacos L.) during the reproductive season. Reprod Domest Anim 2018;53(6):1415-23. DOI: https://doi.org/10.1111/rda.13284        [ Links ]

22. Cucho H, López Y, Caldeira C, Valverde A, Ordóñez C, Soler C. Comparison of three different staining methods for the morphometric characterization of Alpaca (Vicugna pacos) sperm, using ISAS® CASA-Morph system. Nova Biologica Reperta 2019;6(3):284-91. DOI: https://doi.org/10.29252/nbr.6.3.284        [ Links ]

23. Souza T. Avaliação andrológica e criopreservação de sêmen de pumas (Puma concolor Linnaeus, 1771) adultos [tesis maestría]. [Viçosa]: Universidad Federal de Viçosa; 2009 [citado 20 de octubre de 2019]. Recuperado a partir de: https://www.locus.ufv.br/bitstream/handle/123456789/4980/texto%20completo.pdf?sequence=1&isAllowed=y

24. Director A, Giuliano SM, Trasorras V, Carretero MI, Pinto M, Miragaya M. Electroejaculation in llama (Lama glama). J Camel Prac Res 2007; 14(2):203-6.        [ Links ]

25. Flores Huarco N, Cucho H, Carretero MI, Ciprián R, Quispe Ccasa HA, Calderón N, Miragaya M, Giuliano SM. Dimethylformamide cryoprotectant effect on cryopreserved alpaca sperm motility (Vicugna pacos) evaluated by analysis system ISAS®. Spermova 2015;5(1):47-50. DOI: https://doi.org/10.18548/aspe/0002.10        [ Links ]

26. García W, Alarcón V, Bravo W. Artificial insemination of alpacas with refrigerated semen and the inclusion of two types of egg yolk. Rev Investig Vet Perú 2017;28(2):337-44. DOI: https://doi.org/10.15381/rivep.v28i2.13080        [ Links ]

27. Vásquez J, Florentini EA, Valdivia M. Hypoosmotic swelling test in alpaca (Vicugna pacos) epididymal spermatozoa. Reprod Domest Anim 2012;47(6):e83-7. DOI: https://doi.org/10.1111/j.1439-0531.2012.01988.x        [ Links ]

28. Quispe HA. Funcionalidad de la membrana espermática en semen de alpaca (Vicugna pacos) colectado por desviación de conducto deferente [tesis licenciatura]. [Cusco]: Universidad Nacional de San Antonio Abad del Cusco; 2015. 109 p.

29. Alarcón V, García W, Bravo PW. Artificial insemination of alpacas with semen collected by vaginal aspiration and by artificial vagina. Rev Investig Vet Perú 2012;23(1):58-64. DOI: https://doi.org/10.15381/rivep.v23i1.882        [ Links ]

30. Ordoñez C, Cucho H, Ampuero E, Antezana W, Cayo S. Artificial insemination with fresh, cooled and thawed alpaca semen collected with electroejaculation. Spermova 2013;3(1):65-6.        [ Links ]

31. Ciprian Achircana R. Uso de la dimetilformamida en la criopreservación de semen de alpaca (Vicugna pacos) [tesis licenciatura]. [Cusco]: Universidad Nacional de San Antonio Abad del Cusco, Cusco; 2019 [citado 20 de noviembre de 2019]. Recuperado a partir de: http://repositorio.unsaac.edu.pe/handle/UNSAAC/4083

32. Villa N, Castaño D, Duque P, Ceballos A. Glutathione peroxidase and superoxide dismutase activities inblood and seminal plasma in colombian stallions. Rev Colom Cienc Pecua 2012;25(1): 64-70.        [ Links ]

33. Novak S, Smith TA, Paradis F, Burwash L, Dyck MK, Foxcroft GR, et al. Biomarkers of in vivo fertility in sperm and seminal plasma of fertile stallions. Theriogenology 2010;74(6):956-67. DOI: https://doi.org/10.1016/j.theriogenology.2010.04.025        [ Links ]

34. Casaretto C, Lombardo DM, Giuliano S, Gambarotta M, Carretero MI, Miragaya MH. Morphometric analysis of llama (Lama glama) sperm head. Andrologia 2012;44(1):424-30. DOI: https://doi.org/101111/j.1439-0272.2011.01200.x        [ Links ]

35. Soler C, Sancho M, García Molina A, Núñez J, Parráguez VH, Contell J, et al. Llama and alpaca comparative sperm head morphometric analysis. J Camelid Sci 2014;7:48-58.        [ Links ]

36. Giuliano SM, Ferrari MR. Morphometric analysis of head and nuclei of llama spermatozo. Spermova 2015;5(1):110-4. DOI: https://doi.org/10.18548/aspe/0002.25        [ Links ]

37. Flores Huarco NH. Criopreservación de espermatozoides de alpaca (Vicugna pacos) utilizando N, N-dimetilformamida al 4 y 7% [tesis maestría]. [Buenos Aires]: Universidad de Buenos Aires; 2018 [citado 20 de octubre de 2019]. Recuperado a partir de: http://ri.agro.uba.ar/files/download/tesis/maestria/2018floreshuarconilsherber.pdf

38. Meyer RA, Barth AD. Effect of acrosomal defects on fertility of bulls used in artificial insemination and natural breeding. Can Vet J 2001:42 (8);627-34.        [ Links ]

39. Zhao L, Burkin HR, Shi X, Li L, Reim K, Miller DJ. Complexin I is required for mammalian sperm acrosomal exocytosis. Dev Biol 2007; 309(2):236-44. DOI: https://doi.org/10.1016/j.ydbio.2007.07.009         [ Links ]

40. Yániz JL, Vicente Fiel S, Capistrós S, Palacín I, Santolaria P. Automatic evaluation of ram sperm morphometry. Theriogenology 2012;77(7):1343-50. DOI: https://doi.org/10.1016/j.theriogenology.2011.10.039        [ Links ]

41. Pizarro E, Restrepo G, Echeverry J, Rojano B. Effect of seminal plasma on the redox state of cryopreserved stallion semen. Rev MVZ Cordoba 2013;18(Suppl 1):3672-80. DOI: https://doi.org/10.21897/rmvz.134        [ Links ]

42. Núñez Martínez I, Morán JM, Peña FJ. Sperm indexes obtained using computer-assisted morphometry provide a forecast of the freezability of canine sperm. Int J Androl 2007;30(3):182-9. DOI. https://doi.org/10.1111/j.1365-2605.2007.00743.x        [ Links ]

43. Ball BA, Mohammed HO. Morphometry of stallion spermatozoa by computer-assisted image-analysis. Theriogenology 1995;44(3):367-77. DOI: https://doi.org/10.1016/0093-691x(95)00191-a        [ Links ]

44. Lüpold S, Calhim S, Immler S, Birkhead TR. Sperm morphology and sperm velocity in passerine birds. Proc Biol Sci 2009;276(1659):1175-81. DOI: https://doi.org/10.1098/rspb.2008.1645        [ Links ]

45. Bierla JB, Gizejewski Z, Leigh CM, Ekwall H, Söderquist L, Rodriguez Martinez H, et al. Sperm morphology of the Eurasian beaver, Castor fiber: an example of a species of rodent with highly derived and pleiomorphic sperm populations. J Morphol 2007;268(8):683-9. DOI: https://doi.org/10.1002/jmor.10544

46. Malo AF, Gomendio M, Garde J, Lang Lenton B, Soler AJ, Roldan ER. Sperm design and sperm function. Biol Lett 2006;2(2):246-9. DOI: https://doi.org/10.1098/rsbl.2006.0449        [ Links ]

47. Soler C, Sancho M, García A, Fuentes M, Núñez J, Cucho H. Ejaculate fractioning effect on llama sperm head morphometry as assessed by the ISAS® CASA system. Reprod Domest Anim 2014;49(1):71-8. DOI: https://doi.org/10.1111/rda.12226        [ Links ]

48. Giuliano S, Director A, Gambarotta M, Trasorras V, Miragaya M. Collection method, season and individual variation on seminal characteristics in the llama (Lama glama). Anim Reprod Sci 2008;104(2-4):359-69. DOI: https://doi.org/10.1016/j.anireprosci.2007.02.016         [ Links ]

49. Thurston LM, Watson PF, Mileham AJ, Holt WV. Morphologically distinct sperm subpopulations defined by Fourier shape descriptors in fresh ejaculates correlate with variation in boar semen quality following cryopreservation. J Androl 2001;22(3):382-94. DOI: https://doi.org/10.1002/j.1939-4640.2001.tb02194.x        [ Links ]

50. Maroto Morales A, Ramón M, García Álvarez O, Soler AJ, Esteso MC, Martínez Pastor F, et al. Characterization of ram (Ovis aries) sperm head morphometry using the Sperm-Class Analyzer. Theriogenology 2010;73(4):437-48. DOI: https://doi.org/10.1016/j.theriogenology.2009.10.003

51. Maree L, du Plessis SS, Menkveld R, van der Horst G. Morphometric dimensions of the human sperm head depend on the staining method used. Hum Reprod 2010;25(6):1369-82. DOI: https://doi.org/10.1093/humrep/deq075        [ Links ]

52. Hirai M, Boersma A, Hoeflich A, Wolf E, Foll J, Aumüller TR, et al. Objectively measured sperm motility and sperm head morphometry in boars (Sus scrofa): Relation to fertility and seminal plasma growth factors. J Androl 2001;22(1):104-10. DOI: https://doi.org/10.1002/j.1939-4640.2001.tb02159.x         [ Links ]

53. Banaszewska D, Andraszek K, Szostek M, Wójcik E, Danielewicz A, Walczak Jędrzejowska R. Analysis of stallion semiologic semen parameters. Med Weter 2015;71(9):563-7.        [ Links ]

54. Banaszewska D, Andraszek K, Zdrowowicz E, Danielewicz A. The effect of selected staining te chniques on stallion sperm morphometry. Livest Sci 2015;175:128-32. DOI: https://doi.org/10.1016/j.livsci.2015.02.017        [ Links ]

55. Hidalgo M, Rodríguez I, Dorado J, Soler C. Morphometric classification of Spanish thoroughbred stallion sperm heads. Anim Reprod Sci 2008;103(1-3):374-8. DOI: https://doi.org/10.1016/j.anireprosci.2007.06.001        [ Links ]

56. Walczak Jedrzejowska R, Marchlewska K, Oszukowska E, Filipiak E, Bergier L, Slowikowska Hilczer J. Semen analysis standardization: is there any problem in Polish laboratories? Asian J Androl 2013;15(5):616-21. DOI: https://doi.org/10.1038/aja.2013.48        [ Links ]

57. Banaszewska D, Andraszek K, Czubaszek M, Biesiada Drzazga B. The effect of selected staining techniques on bulls sperm morphometry. Anim Reprod Sci 2015;159:17-24. DOI: https://doi.org/10.1016/j.anireprosci.2015.06.019        [ Links ]

58. Kondracki S, Banaszewska D, Wysokińska A, Iwanina M. The effect of sperm concentration in the ejaculate on morphological traits of bull spermatozoa. Folia Biol (Krakow) 2012;60(1-2): 85-91. DOI: https://doi.org/10.3409/fb60_1-2.85-91        [ Links ]

59. Núñez Martínez I, Moran JM, Peña FJ. Sperm indexes obtained using computer-assisted morphometry provide a forecast of the freezability of canine sperm. Int J Androl 2007;30(3):182-9. DOI: https:/doi.org/10.1111/j.1365-2605.2007.00 743.x        [ Links ]

60. Andraszek K, Szeleszczuk O, Niedbała P, Kuchta Gładysz M. Preliminary research on evaluation of sperm morphometry and chromatin structure in the semen of silver fox (Vulpes vulpes). Folia Pomeranea Univ Technol Stetin Agric., Alimento Piscaria Zootech 2016;326(38)2:5-16. DOI: https://doi.org/10.21005/AAPZ2016.38.2.01

61. Brito LF, Greene LM, Kelleman A, Knobbe M, Turner R. Effect of method and clinician on stallion sperm morphology evaluation. Therigenology 2011;76(4):745-50. DOI: https://doi.org/10.1016/j.theriogenology.2011.04.007        [ Links ]
