Revista Boliviana de Química

versión On-line ISSN 0250-5460

Rev. Bol. Quim vol.38 no.2 La Paz jun. 2021

https://doi.org/10.34098/2078-3949.38.2.2

FULL ORIGINAL ARTICLE

Absorbing capacity of starches of five food bolivian species

Capacidad absorbente de almidones de cinco especies bolivianas alimentarias

Fabiola R. Valdivieso1

Patricia A. Mollinedo Portugal1  *

1Food Chemistry Laboratory, Instituto de Investigaciones Químicas IIQ, Chemical Sciences Department, Facultad de Ciencias Puras y Naturales FCPN, Universidad Mayor de San Andrés UMSA, P.O. Box 303, Calle Andres Bello s/n, Ciudad Universitaria Cota Cota, phone +59122792238, La Paz, Bolivia. www.umsa.bo


Abstract:

Starches from five different botanical origins have been analyzed: potato (Solanum tuberosum), quinoa (Chenopodium quinoa), cassava (Manihot esculenta), wheat (Triticum aestivum) and rice (Oryza sativa) as standard sample. Moisture values, gelatinization characteristics, percentage of amylose and amylopectin, starch granule morphology and retrogradation established; to determine the relationship between them with the absorbent capacity of each starch

In the present paper, the retrograded quinoa starch was determined as the one with the maximum absorbing capacity. This starch presents the smallest starch granule, the highest relation of amylose and amylopectin (higher percentage of amylopectine), and a low degree of gelatinization. In this type of starch, retrogression favors the absorption due to the breakage of the granules, which results in a greater contact surface, causing water molecules to be retained more easily in the structure as hydrogen bridges are formed. Even so, the rest of the starches have immediate absorbent capacity.

Keywords: Potato starch; Quinoa starch; Yucca starch; Wheat starch; Rice starch; Absorption; Starch structural characteristics; Morphology of starch granules; Retrogression

Resumen:

Se analizó almidones de cinco diferentes orígenes botánicos: papa (Solanum tuberosum), quinua (Chenopodium quinoa), yuca (Manihot esculenta), trigo (Triticum aestivum) y arroz (Oryza sativa) como muestra estándar. Se obtuvo valores de humedad, características de gelatinización, porcentaje de amilosa y amilopectina, morfología del gránulo de almidón y retrogradación, para determinar la relación entre las mismas con la capacidad absorbente de cada almidón.

Los resultados mostraron que el almidón de quinua retrogradado es el de máxima capacidad absorbente. Este almidón presenta un gránulo de almidón más pequeño, una relación más alta de amilosa y amilopectina (mayor porcentaje de amilopectina) y un bajo grado de gelatinización. La retrogradación favorece la absorción debido a la ruptura de los gránulos permitiendo que las moléculas de agua sean más fácilmente retenidas en la estructura. Aun así, los demás tipos de almidón también llegan a tener capacidad absorbente inmediata.

Palabras clave: Almidón de papa; Almidón de quinua; Almidón de yuca; Almidón de trigo; Almidón de arroz; Absorción; Características estructurales de almidones; Morfología de gránulos de almidón; Gelatinización; Retrogradación

INTRODUCTION

The natural polymers called carbohydrates are polysaccharides, which are naturally degradable macromolecules (biodegradable) 1),(2. One of the most important natural polysaccharides is starch 4, granules composed of two polymers of glucoses: amylose and amylopectin found in food grains 4),(5.

Amylose is a linear polymer of glucose units linked by α (1-4) glycosidic bonds, in which some α (1-6) bonds may be present. Amylopectin is a branched polymer of glucose units linked in 94-96% by α (1-4) bonds and 4-6% with α (1-6) bonds 6.

Starch granules can be found in a semicrystalline polymer system, where the crystallinity varies from 15 to 45%. The crystalline and the non-crystalline areas have a concentric arrangement. The branching points of amylopectin correspond to amorphous areas 7),(8.

The morphology, chemical composition, and supramolecular structure of starch granules are important characteristics that affect their functional properties 9. In addition, starches of different botanical origin show variation in their chemical and structural composition which influences their properties and functionality 10.

The use of starch in different industrial applications depends on properties such as gelatinization, amylose and amylopectin content, retrogradation, moisture, absorption particle size and surface area 11. These structural characteristics may have a close relationship with each other. In this way, the use of starches as absorbents is restricted by their structural characteristics.

Absorbent polymers are materials that can absorb and retain large amounts of water or aqueous solutions. These polymers consist of hydrophilic monomers that make up a three-dimensional network 12),(14. In the case of starch, hydroxyl groups favor the absorbent capacity 15.

RESULTS AND DISCUSSION

The results of the analysis of extraction performance, humidity, gelatinization, granule morphology, rate amylose - amylopectin and absorption realized on five starches of different botanical origin, are shown in (Table 1).

Quinoa starch had the lowest extraction yield. Quinoa contains very low percentage of water in its structure and a high percentage of protein and lipid, which can hinder the extraction process. Quinoa starch was found to be in the inner part of the pseudocereal (Perisperm) 16 whereas in the case of wheat, starch is found on the outside of the cereal (Endosperm) 17. Therefore, it is likely that the low yield in quinoa starch extraction is due to this characteristic.

The moisture value of each sample is one of the variable that impact the gelatinization characteristics. For example, Cassava starch, with the highest percentage of moisture, is one of the highest gelatinization.

The samples with better gelatinization are starches of the potato and cassava. According to the results, the samples with less gelatinization are wheat, quinoa and rice; those samples need higher temperature to reach this condition.

Table 1 Results of analyzes performed on potato starch, quinoa, cassava, wheat and rice as standard sample. The results are shown with their standard deviation and propagation of errors when they are numbers calculated from a calibration curve.

Maximal values. BU = Brabender units, arbitrary units of the equipment used; Ti is the start temperature of gelatinization; TPG is the temperature at which the maximum gelatinization is reached; ΔH is maximum gelatinization; tmaxG is the time in which the maximum gelatinization is reached

Figure 1: Starch granules, obtained under a microscope.

Starch retrogradation occurs through a previous gelatinization process, which requires knowing the gelatinization characteristics of each starch.

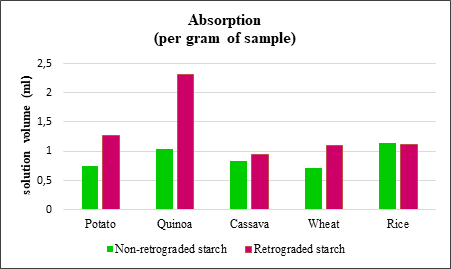

The results on the tests of the absorbent capacity of each starch are shown in figure 2:

Figure 2 Results of the absorbent capacity of ungraded starches and retrograded starches

According to literature, high transition temperatures have been related to a high degree of crystallinity, indicating structural stability and resistance of gelatinization granules 18. As seen in table 1 and figure 1, quinoa starch is the smallest and the one that contains the highest percentage of amylopectin. Wheat starch is the largest and has one of the lowest percentages of amylopectin in relation to the others. As can be seen in figure 2, retrogradation favors the absorbent capacity of starches; with the exception of rice starch.

EXPERIMENTAL

For the extraction of starch, modified methods mentioned in different works and articles were used (19)-(21). A modified Vansteelandt and Delooar method was employed for wheat starch.

The humidity of 0.2 g samples was determined in a moisture balance Radwag MAC 110 / WH . four times each.

Gelatinization thermograms were done in a micro visco amylograph Brabender The analysis was performed twice for each starch and the average was reported. The temperature ramp used was as follows:

Microscope B-350 OPTIKA was employed to observe granules of each starch. Perimeter, area, diameter, and percentage of amylose and amylopectin were the values observed from the images obtained, three times each

Amylose and amylopectin quantification was by Aristizábal and Sánchez method (22). It is a spectrophotometric method that measures the absorbance of the iodine-starch complex at 620 nm and is only used up to a percentage of 40% amylose. The amylopectin content was calculated by subtracting the amylose content. A calibration curve is obtained by plotting concentration vs. absorbance at 0%, 10%, 20%, 25%, 30% amylose in a (Micro miu) uQuant BIOtek, USA spectrophotometer using solutions of sodium hydroxide, ethanol (95%), sodium hydroxide (0.09M), acetic acid (1M) and lugol (2%), five times for each starch.

Retrograded starches came from the gelatinization process with a magnetic stirrer MS H280 Pro. Subsequently, the gelatinized starches were put into an oven at 80 ° C until dryness. Finally, the retrogradation of the starches was submitted to a microscope evaluation.

For the absorption tests, considering its possible industrial application, we employed a solution of sodium chloride (3%) and citric acid (1%).

In order to determine the maximum volume of solution that starch samples absorb, the ratio between starch and absorbed volume was determined from 1 g of each starch, in non-retrograde and retrograded state.

CONCLUSIONS

The retrograded quinoa starch is the one with the maximum absorbent capacity. The granule of this starch is the smallest one, has the highest ratio of amylose and amylopectin or highest percentage of amylopectin, and a low degree of gelatinization. These structural characteristics allow its high degree of absorption. In this starch, retrogradation favors absorption due to the breakdown of the granules, resulting in a greater contact surface which generates greater contact with the amylopectin structure; this fact causes water molecules to be more easily retained in the structure, and hydrogen bonds are formed.

REFERENCES

1. Vasiljevic L., Pavlović S. Biodegradable Polymers Based on Proteins and Carbohydrates, In: Advances in Applications of Industrial Biomaterials, ed by Pellicer, E., Nikolic, D., Sort, J., Baró, M., Zivic, F., Grujovic, N., Grujic, R., Pelemis, S., 2017, Springer International Publishing, Springer Nature Switzerland AG, 87-101. DOI: https://doi.org/10.1007/978-3-319-62767-0_5. Links ]

2. Songa, S.S., Qi, H.B., Wu, Y.P. 2011, Preparation and properties of water-absorbent composites of chloroprene rubber, starch, and sodium acrylate, Polymers Advanced Technologies, 22 (12), 1778-1785, DOI: 10.1002/pat.1671 . [ Links ]

3. Cornejo-Ramírez, Y.I., O., Martínez-C Del Toro-Sánchez, C.L., Wong-Corral, F.J., Borboa-Flores, J., Cinco-Moroyoqui, F.J. 2018, The structural characteristics of starches and their functional properties, CyTA - Journal of Food, 16 (1), 1003-1017, DOI: 10.1080/19476337.2018.1518343. [ Links ]

4. Cornejo Ramírez, I., Cruz, O.M., Del Toro Sánchez, C.L., Wong Corral, F.J., Borboa Flores, J., Cinco Moroyoqui, F.J. 2018, The structural characteristics of starches and their functional properties, Journal of Food, 16 (1), 1003-1017, DOI: 10.1080/19476337.2018.1518343. [ Links ]

5. Villarroel, P., Gómez, C., Vera, C.,Torres, J. 2018, Almidón resistente: Características tecnológicas e intereses fisiológicos, Revista chilena de nutrición, 45 (3), 271-278, DOI: https://dx.doi.org/10.4067/s0717-75182018000400271Links ]

6. Hernández Medina, M., Torruco Uco, J.G., Chel Guerrero, L., Betancur Ancona, D. 2008, Caracterización fisicoquímica de almidones de tubérculos cultivados en Yucatán, México, Food Science and Technology, 28 (3), DOI: 718-726. https://doi.org/10.1590/S0101-20612008000300031. [ Links ]

7. Flores Castro, A. 2006, Estudio de restrogradación del almidón presente en tortillas, utilizando diversas técnicas (MSc tesis), Instituto Politécnico Nacional, Centro de Desarrollo de Productos Bióticos, Ciudad de Mexico, Mexico, retrieved from https://tesis.ipn.mx/jspui/bitstream/123456789/5090/1/1321_2006_SEPROBI_MAESTRIA_flores_castro_alejandra.pdfLinks ]

8. González Blair, G. . Desarrollo de productos con alto contenido de almidón para la industria de alimentos, Fundación Universitaria Agraria de Colombia-UNIGRARIA, 1ra edicion, 2012, Bogota, Colombia, pp.6-22. [ Links ]

9. Granados, C., Guzmán, L.E., Acevedo, D., Díaz, M., Herrera, A. 2014, Propiedades Funcionales del almidón de Sagu (Maranta arundinacea), Biotecnología en el Sector Agropecuario y Agroindustrial, 12 (2), 90-96, https://revistas.unicauca.edu.co/index.php/biotecnologia/article/view/33Links ]

10. Teli, M.D., Mallick, A. 2018, Utilization of Waste Sorghum Grain for Producing Superabsorbent for Personal Care Products, Journal of Environmental Polymer Degradation, 26 (4), 1-12, DOI: 10.1007/s10924-017-1044-z [ Links ]

11. Barleany, D.R., Ulfiyani, F., Istigomah, S., Heriyanto, H., ,Swelling properties of cassava starch grafted with poly (potassium acrylate-co-acrylamide) superabsorbent hydrogel prepared by ionizing radiation, International Conference of Chemical and Material Engineering, 1699 (1), DOI: 0.1063/1.4938323.. [ Links ]

12. Zhi Zhanga, K., Chena, P., Dub, X., Xuea, Z., Chena, S., Yang, B. 2014, Effects of amylose content on property and microstructure of starch-graft-sodium acrylate copolymers, Carbohidrate Polymers, 102,, 453-459, DOI: 10.1016/j.carbpol.2013.11.027 . [ Links ]

13. Songa, S.S., Qi, H.B., Wu, Y.P. 2011, Preparation and properties of water-absorbent composites of chloroprene rubber, starch, and sodium acrylate, Polymers Advanced Technologies , 22 (12), 1778-1785, DOI: 10.1002/pat.1671 [ Links ]

14. Arzapalo-Quinto, D., Huamán-Cóndor, K., Quispe-Solano, M., Espinoza-Silva, .. 2015, Extracción y caracterización de almidón de tres variedades de quinua (Chenopodium quinoa Willd) Negra Collana, Pasankalla Roja y Blanca Junin, Revista de la Sociedad Química del Perú, 81 (1), 44-54. [ Links ]

15. Juárez, Z.N., Bárcenas-Pozos, M.E., Hernández, L.R. 2014, El grano de trigo: características generales y algunas problemáticas y soluciones a su almacenamiento, Temas seleccionados de Ingenieria de Alimentos, 8 (1), 79-93. [ Links ]

16. Vignola, M.B. 2017, Influencia del genotipo y el ambiente sobre la variabilidad de la calidad tecnológica y nutricional de cultivos de trigo, Cambios en la calidad nutricional debido a precesamiento (PhD tesis), Universidad Nacional de Córdoba. Facultad de Ciencias Agropecuarias, Cordoba Argentina. Retrieved from: https://rdu.unc.edu.ar/bitstream/handle/11086/4860/Vignola%2C%20Mar%C3%ADa%20Bel%C3%A9n%20-%20Influencia%20del%20genotipo%20y%20el%20ambiente%20sobre%20la%20variabilidad%20de%20la%20calidad%20tecnol%C3%B3gica....pdf?sequence=1&isAllowed=y. [ Links ]

17. Alcón-Callejas, D. 2016, Caracterización morfológica del tubérculo y criterios de calidad culinaria en variedades de papa amarga (Solanum juzepczukii) y (Solanum curtilubum) en el municipio de San Andrés de Machaca (BSc tesis), Universidad Mayor de San Andres. Facultad de Agronomia. Carrera de ingeniería en producción y comercialización, La Paz, Bpñivia. Recuperado de https://repositorio.umsa.bo/xmlui/bitstream/handle/123456789/7629/T-2245.pdf?sequence=1&isAllowed=y. [ Links ]

18. Aristizábal, J., Sánches, T. Guía técnica para producción y análisis de almidón de yuca, Boletin de servicios agricolas de la FAO, 2007, Roma, Italia, pp.49-91. [ Links ]

Received: June 24, 2020; Accepted: June 23, 2021

Correspondent author: pamollinedo@umsa.bo *

Creative Commons License This is an open-access article distributed under the terms of the Creative Commons Attribution License
